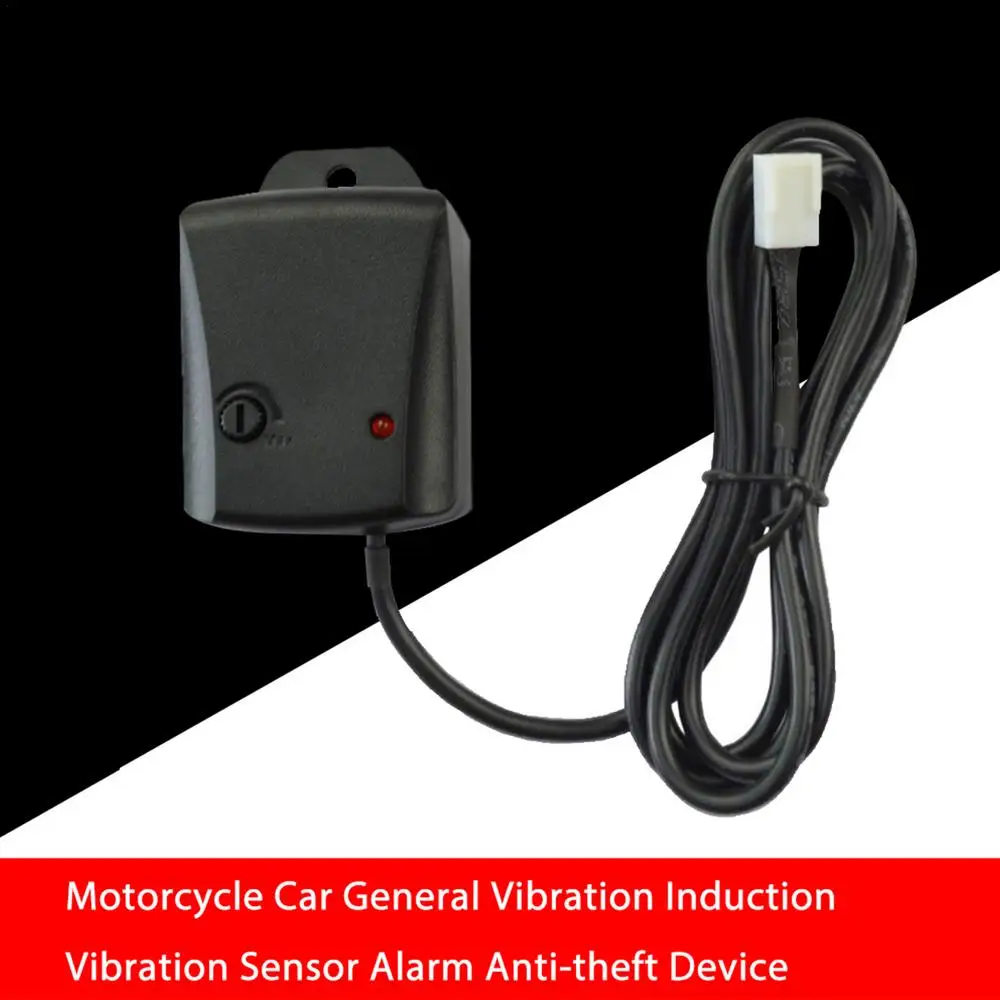

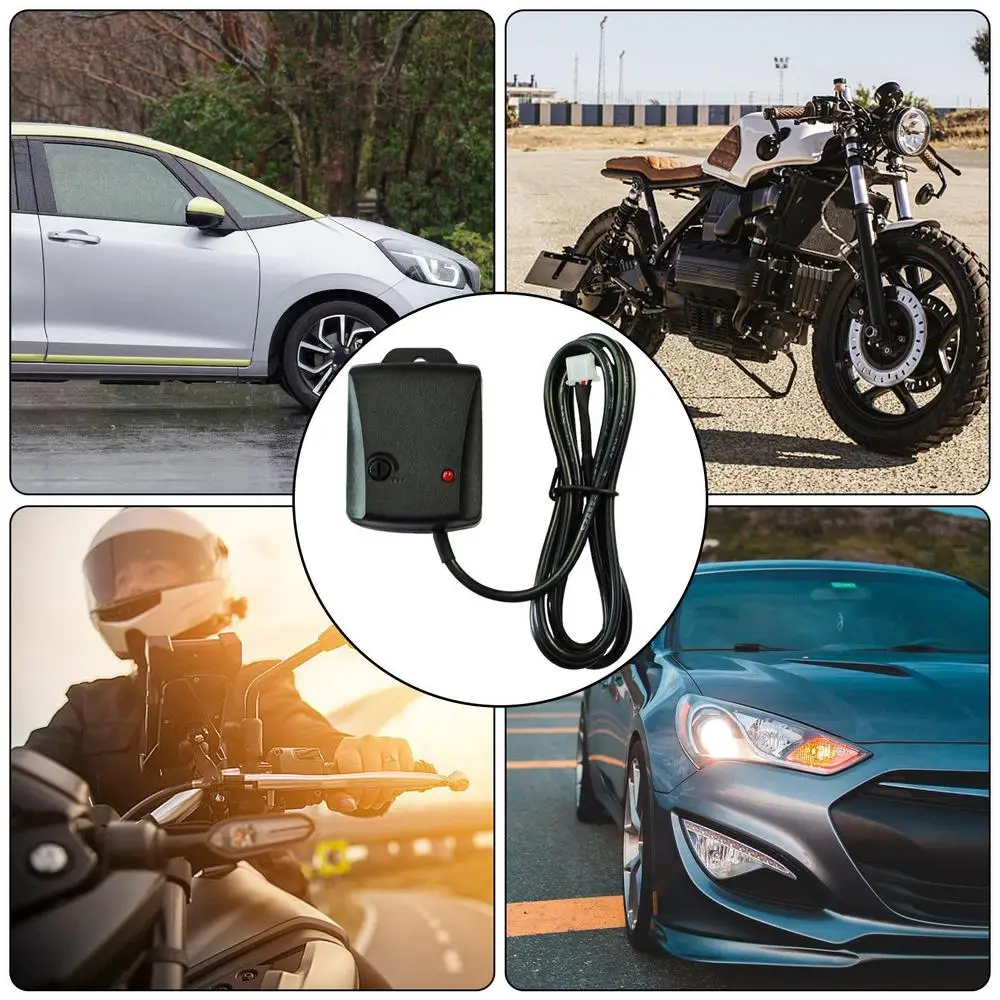

Universal Motorcycle Car General Vibration Induction Vibration Sensor Alarm Anti-theft Device Motorcycle Accessories
China Mainland
$13.99
Sale price
$13.99
Regular price
$19.99
Skip to product information
Universal Motorcycle Car General Vibration Induction Vibration Sensor Alarm Anti-theft Device Motorcycle Accessories
$13.99
Sale price
$13.99
Regular price
$19.99
Parameter:
Material: ABS + Electronics
Output current: ≤100mA (maximum load current)
Sensitivity: -105dB
Quiescent current: ≤6mA
Rated working voltage: 12V
Minimum operating voltage: >5V
Trigger pole number: unipolar trigger output
Interface mode: XH2.54 or 2510 three wire interfaces (interface socket is 2.54 3P common models, if you need 2510 3P interface, you can contact us)
Trigger mode: negative trigger to ground or positive 12V trigger
Working voltage: DC10V-16V

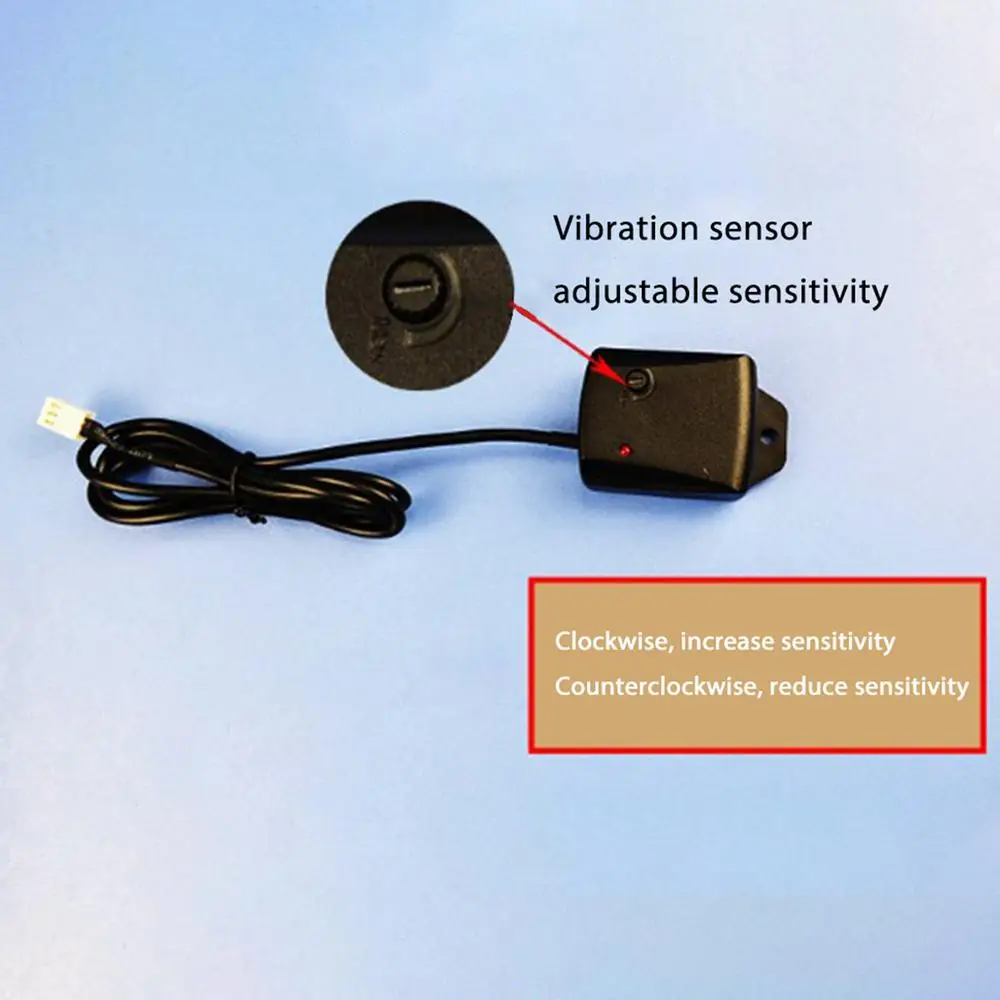

Sensitivity: the twist can be debugged
Indication mode: LED light red light indication
Description:
1. The blue line is the signal output output by the 358 op amp. If the signal is not vibrated, it is high (the IO port should be pulled up), and if the signal is vibrated, it is low (signal to ground).
2. Red line power: +12V
3. The black line is the ground line
Notes:
If the output is connected to the high level, it needs to add a resistor of 100 ohms or less. If you want to drive the wireless transmitter module, you can not replace the resistor. The red and black wires are connected to the positive and negative power input of the module. The number (DC alarm horn) is preferably an external relay control to avoid large current damage to the sensor internal components (for reference).
List:

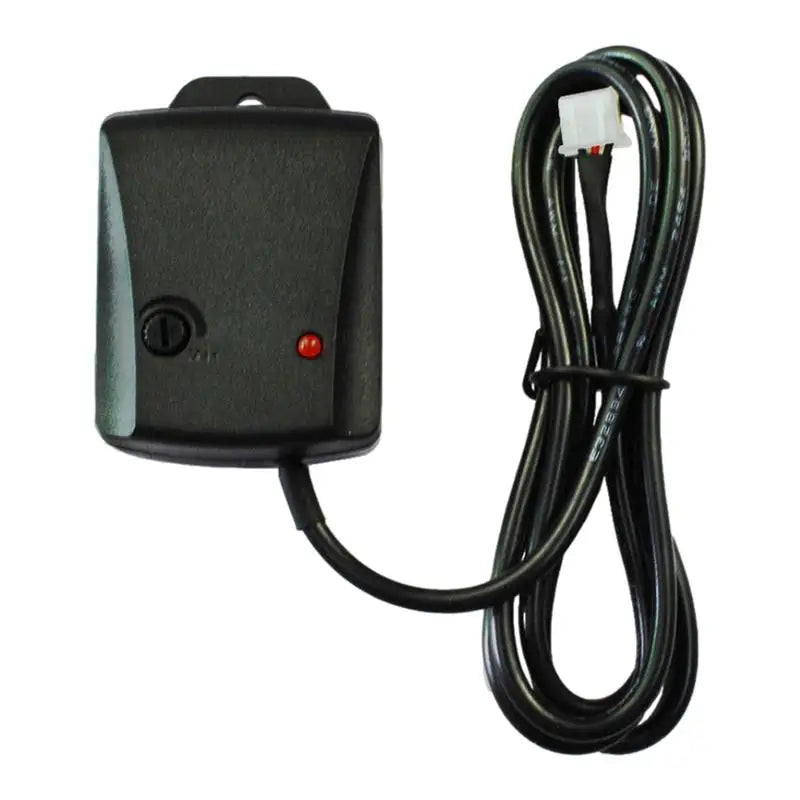

1*1m/39.37in black sheathed wire + anti-theft device
See more product details

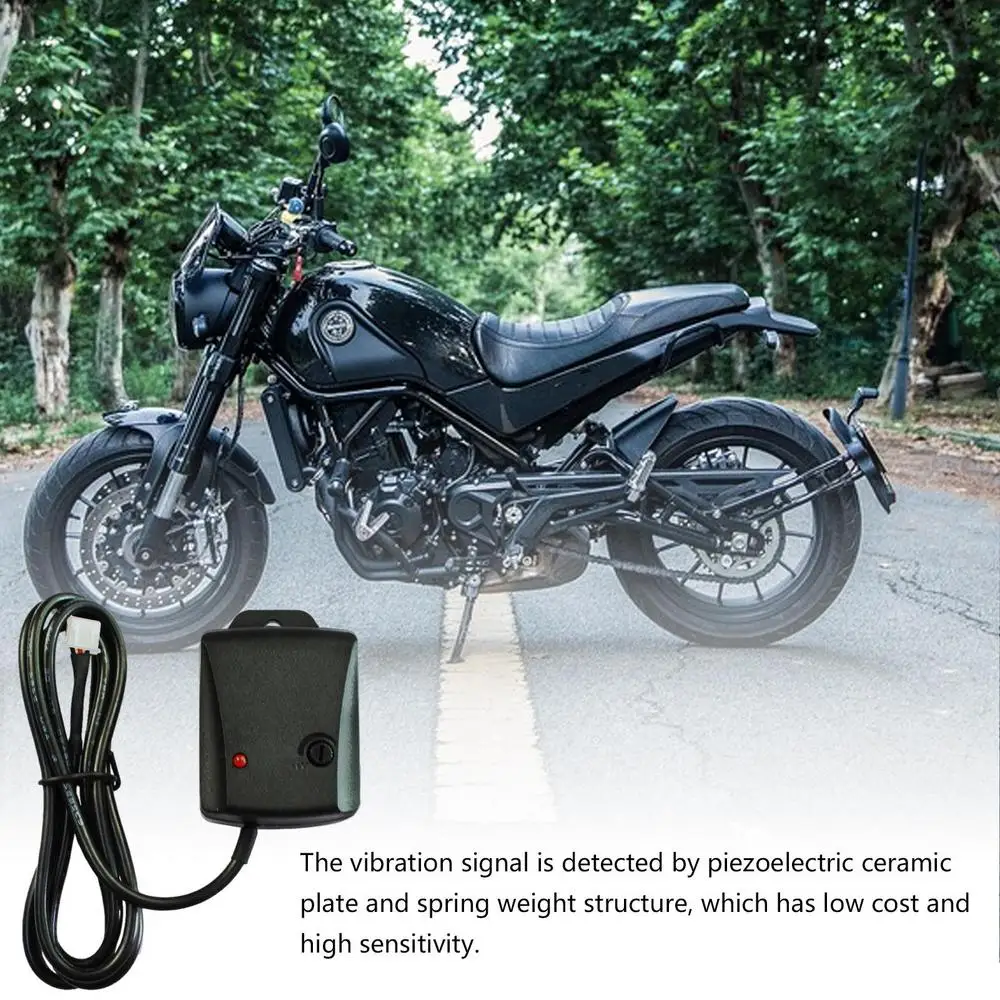

1.Excellent Alertness: Secure your bike with a sophisticated high performance contact spring vibration sensing system that detects the slightest movement, and alerts you instantly with a fast and loud buzzer piece.
2.Top-Notch Security: Crafted with high-quality materials, this bike alarm ensures reliable protection. Its durable ABS and electronics provide stable and wear-resistant performance, ensuring long-lasting security for your bike.
3.Advanced Protection: Your must-have modern security solution to prevent theft. Practical and easy to use, this bike alarm is a low-cost anti-theft device for cars and motorcycles.
4.Ideal Safeguard: Ensure the security of your car, bicycle, or motorcycle with our bike alarm. Its universal compatibility ensures stable and reliable protection for almost all types of vehicles, delivering effective safety measures.
5.Secure Your Ride: This bike alarm can be detected internally by most vehicles, thanks to its wireless transmitter module that requires no professional installation. It is fitting various car anti-theft devices and has wide applications. It also alerts you with a vibration signal when someone tries to tamper with your bike.
Material: ABS + Electronics
Output current: ≤100mA (maximum load current)
Sensitivity: -105dB
Quiescent current: ≤6mA
Rated working voltage: 12V
Minimum operating voltage: >5V
Trigger pole number: unipolar trigger output
Interface mode: XH2.54 or 2510 three wire interfaces (interface socket is 2.54 3P common models, if you need 2510 3P interface, you can contact us)
Trigger mode: negative trigger to ground or positive 12V trigger
Working voltage: DC10V-16V
Sensitivity: the twist can be debugged
Indication mode: LED light red light indication
Description:
1. The blue line is the signal output output by the 358 op amp. If the signal is not vibrated, it is high (the IO port should be pulled up), and if the signal is vibrated, it is low (signal to ground).
2. Red line power: +12V
3. The black line is the ground line
Notes:
If the output is connected to the high level, it needs to add a resistor of 100 ohms or less. If you want to drive the wireless transmitter module, you can not replace the resistor. The red and black wires are connected to the positive and negative power input of the module. The number (DC alarm horn) is preferably an external relay control to avoid large current damage to the sensor internal components (for reference).
List:
1*1m/39.37in black sheathed wire + anti-theft device
1*Instruction
See more product details
1.Excellent Alertness: Secure your bike with a sophisticated high performance contact spring vibration sensing system that detects the slightest movement, and alerts you instantly with a fast and loud buzzer piece.
2.Top-Notch Security: Crafted with high-quality materials, this bike alarm ensures reliable protection. Its durable ABS and electronics provide stable and wear-resistant performance, ensuring long-lasting security for your bike.
3.Advanced Protection: Your must-have modern security solution to prevent theft. Practical and easy to use, this bike alarm is a low-cost anti-theft device for cars and motorcycles.
4.Ideal Safeguard: Ensure the security of your car, bicycle, or motorcycle with our bike alarm. Its universal compatibility ensures stable and reliable protection for almost all types of vehicles, delivering effective safety measures.
5.Secure Your Ride: This bike alarm can be detected internally by most vehicles, thanks to its wireless transmitter module that requires no professional installation. It is fitting various car anti-theft devices and has wide applications. It also alerts you with a vibration signal when someone tries to tamper with your bike.
